Pumps for Industrial Applications
Vertiflo Pumps
Vertiflo Pumps offer a complete line of immersible and horizontal pumps for many industrial applications. They are available in many materials of construction and the cast pieces have great longevity and quality. Many mechanical seal choices exist to provide excellent options, customization to application, and fast availability. Even the vertical pumps with special baseplate and depth arrangements, can be customized and shipped with in a reasonable time. The excellent quality and quick customization make them a true work horse for industry.

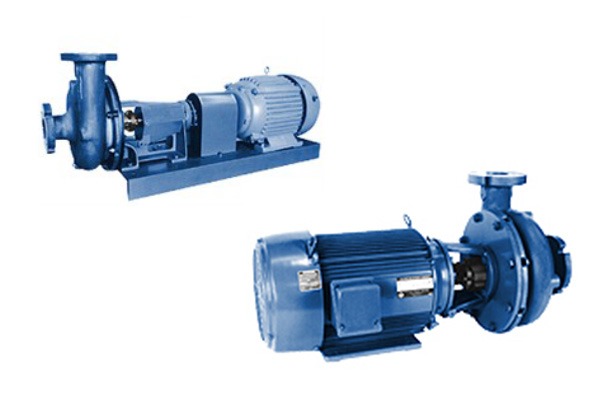

SERIES 1500 & 1600 Vortex Pumps
WIDE RANGE OF APPLICATIONS:
- Food Processing Solids
- Waste Water Treatment
- Pollution Control
- Slurries
- Industrial Process
- Solids
CAPABILITIES:
- Capacities to 1600 GPM
- Heads to 170 Feet TDH
- Temperature to 250° F
- Back Pull-Out Construction
- Fully Recessed Vortex Impeller
- External Impeller Adjustment
- Packing or Mechanical Seal
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- Alloy 20
- CD4MCu

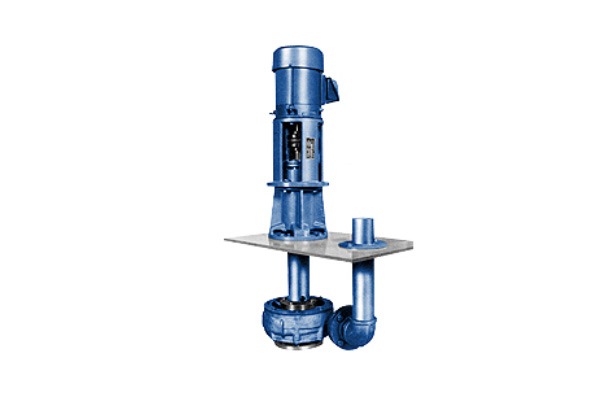

SERIES 600
Industrial Vertical Process Pumps
WIDE RANGE OF APPLICATIONS:
- Industrial Spray Washers
- Pickling/Bonderizing
- Spray Booths
- Coolant Systems
- Paint Systems
- Filtration Systems
- Pollution Control
- E-Coat Paint Systems
CAPABILITIES:
- Capacities to 3000 GPM
- Heads to 230 Feet
- Temperature to 180° F
- Column Extensions of 12″, 15″ & 21″
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- Alloy 20

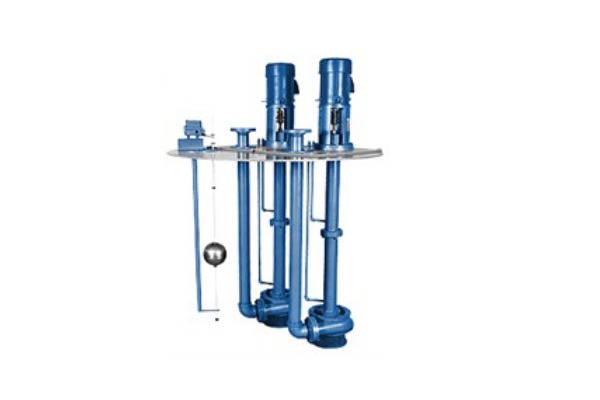

SERIES 800
Vertical Sump Pumps
WIDE RANGE OF APPLICATIONS:
- Industrial Process
- Pollution Control
- Sump Drainage
- Hazardous, Toxic & Inflammable Liquids
- Cooling Towers
- Acids
- Clear Liquids
- Flood Control
- Corrosive Liquids
- Condensate
CAPABILITIES:
- Capacities to 3000 GPM
- Heads to 230 Feet TDH
- Temperature to 350° F
- Pit Depths to 26 Feet
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- Alloy 20
- Hastelloy
- CD4MCu

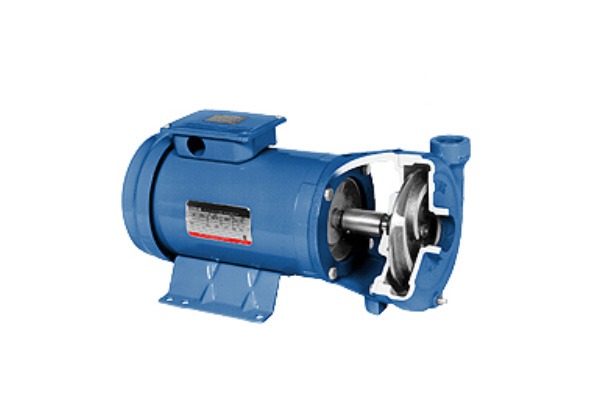

SERIES 1300
MODEL 1320, 1326 & 1334
Industrial Horizontal, Close-Coupled, End Suction Pumps
WIDE RANGE OF APPLICATIONS:
- Industrial Process
- Pollution Control
- General Pumping
- Spray Systems
- Deionized Water
- Waste Water
- Clear Liquids
- Corrosive Liquids
- Chemicals
CAPABILITIES:
- Capacities to 3600 GPM
- Heads to 275 Feet TDH
- Temperature to 250° F
- Back Pull-Out Construction
- Semi-Open Impeller
- Packing or Mechanical Seal
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- CD4MCu

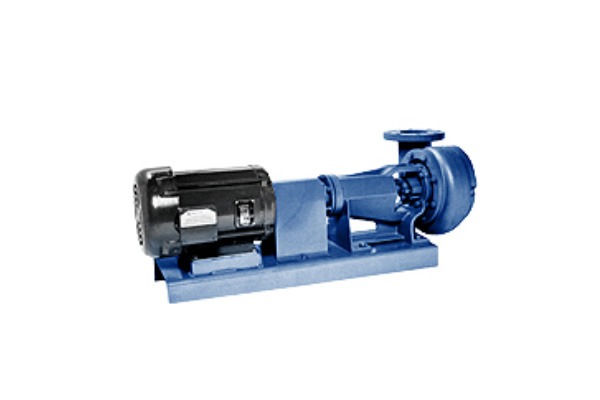

SERIES 1400
MODEL 1420, 1424, 1434
Industrial Horizontal, Base-Mounted, End Suction Pumps
WIDE RANGE OF APPLICATIONS:
- Industrial Process
- Pollution Control
- General Pumping
- Spray Systems
- Deionized Water
- Waste Water
- Clear Liquids
- Corrosive Liquids
- Chemicals
CAPABILITIES:
- Capacities to 3600 GPM
- Heads to 275 Feet TDH
- Temperature to 250° F
- Back Pull-Out Construction
- Semi-Open Impeller
- Packing or Mechanical Seal
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- CD4MCu
